H20 & Soldier System

System Description :

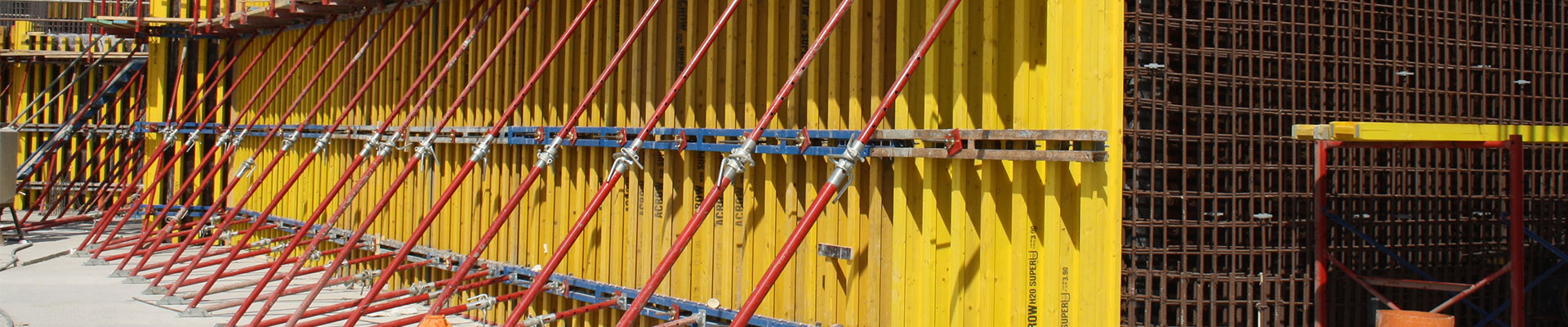

ACROW’s H20 and Soldier System is a multi-purpose system with various applications. It is one of the most flexible systems offered by the company for its high adaptation and easy re-assembling, especially in case structure ground plans are changed frequently.

The H2O and Soldier Wall System has formwork elements that are easily and quickly assembled by connecting the H20 timber beams to the soldier using an H20 connection. Dismantling the system is as easy as its installation. It is one of the most economical and cost-effective alternatives to steel frame formwork systems, as it offers higher rigidity and stability for all types of walls and columns.

System Application :

  • Foundations
  • Walls
  • Columns
  • Core walls
  • Shear walls
  • Water structures
  • Abutments

Features :


Pre Assembly


Cost Effective


Multi Purpose



  • One of the most flexible formwork systems.
  • Multi-purpose with many applications.
  • Easy and quick assembly.
  • Adaptable in terms of form and allowable concrete pressure

Advantages :

  • High adaptability, flexibility, and easy re-assembling.
  • Suitable for all types of walls and columns.
  • High rigidity and stability.
  • A cost-effective system that combines timber beams, steel soldiers, and plywood.
  • High-quality concrete finishing for both straight and curved walls.
  • High flexural stiffness of timber beams and steel walers
  • Easy and Fast shuttering for any height or layout due to the minimum number of tie rods.
  • Allows pouring concrete freely without restrictions on 4m height concrete pouring speed.

System Main Components :

ACROW H20 Wooden Beams

  • Steel Waler (Soldier)
  • H20 Connection
  • Steel Waler Splice
  • System Accessories: Access Bracket - Corner Filler Panel

System Capacity :

High permissible fresh concrete pressure up to 90 KN/M^2

Technical Data :
